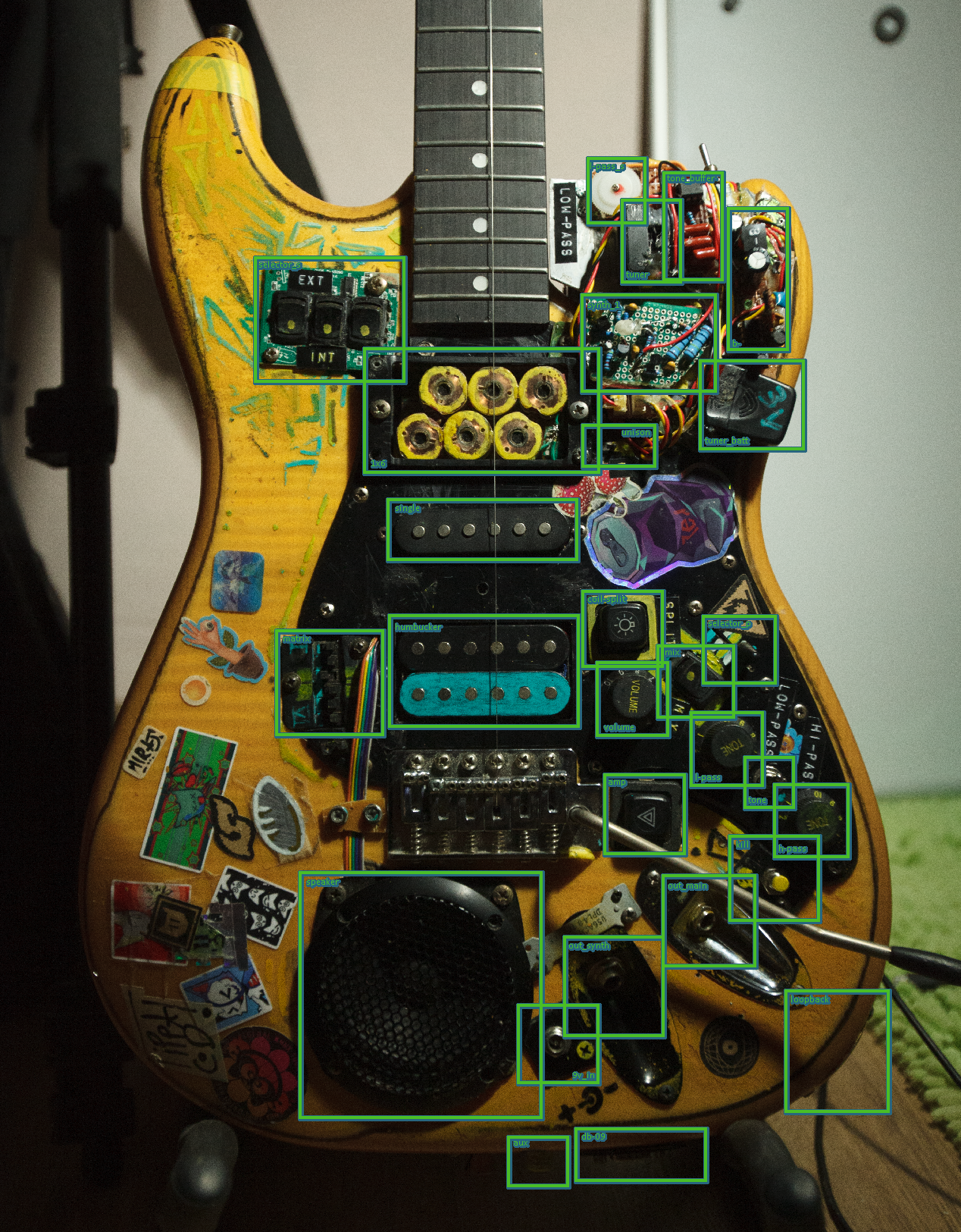

Switches for selecting strings,
in groups of two(6/5,4/3,2/1),
going to the switch matrix[INT]
or db-09 connector[EXT].

6 single string pickups
fitted into a roughly 1
humbucker space.

Low-pass control for
synth buffer/tone circuit.

Buffer and tone for
combined synth output.

Tuner, taken apart
and infused into the
electronics module.

Negative 3 volt
power supply.
Very ineffective,
but works.

My original layout of
the shocktave pedal.
"if it works, leave it"

My original layout of
the shocktave pedal.
"if it works, leave it"

Just a standard
singlecoil pickup.

A humbucker pickup
with a cut wire to
allow for coil splitting

Switch to turn
humbucker coilsplit
on or off

A tiny switch, that
feeds synth 2 the
same string as synth 1.

Second synth, hidding under the pickguard.
My new layout of the shocktave pedal.
Trivia: harvested of a different project.

6 switches that decide
where strings going
from [INT] of selector_s.
(up - synth_1, down - synth_2)

A switch to send strings
into the synth 2, effectively
turns synth 2 on/off

A standard 5 way
pickup selector. With
no neck pickup last
position acts like mute.

Volume potentiometer,
unchanged and origianl.

Switches guitar signal
and combined synth
signal into a mixer,
which outputs the
result to out_main.

Kinda weak low-pass filter,
default capacitor is not
really enough, but oh well.

Very strong high-pass filter,
kinda just picked random
capacitor, so i guess if
it works it works.

Main power switch for:
- synth_1
- synth_2
- b-
- tone_buffer
- mix(mixer)

Engages the tone stack
(l-pass and h-pass)
before sending guitar
signal to volume.

Speaker for the amplifier,
gets pretty loud.
sounds like shit tho.

Cuts signal to out_main

This is really only a button to turn on
the amplifier, but im not coding in the
back side of the guitar lmao;
All there is anyway for it is
a volume control.
Amp it self is some kind of cheap
module i ordered from somewhere.

Well yea.
Main output.

Deafult output for
combined synth output.

Center positive,
the way it should be.

Connect your effect pedals
in to out_main, and effects
out to here, and BOOM!
Effect applied to
amplifiers input.

A db-09 connector for external modules
(right now there is no external modules)
it caries all 6 strings, ground,
return signal from the module,
and one pin is not connected.

Regular stereo(L and R wires together)
aux jack, there is a switch that switches
amp output from speaker to this jack.
(potentialy volume warning)
